V2 Rear Differential Skid Plate

2023+ Honda Pilot

Add Purpose-Built Protection for Your Rear Differential

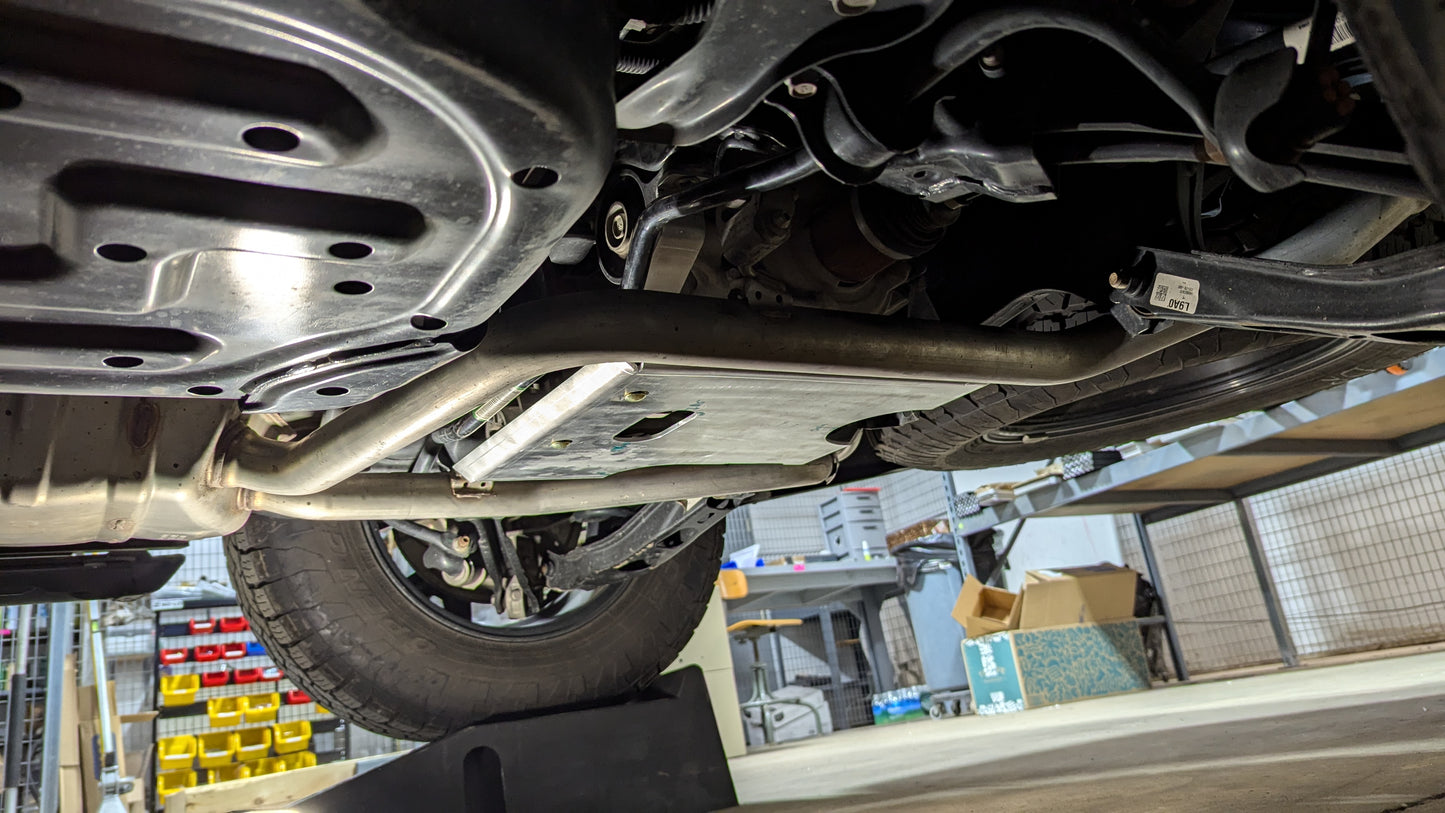

The rear differential sits underneath your Pilot, exposed to rocks, ruts, trail obstacles, and uneven terrain.

The V2 Rear Differential Skid Plate adds a protective barrier between those hazards and the differential housing. It is designed specifically for the 2023+ Honda Pilot and includes service access so you can change the rear differential fluid without removing the skid plate.

Built for the 2023+ Honda Pilot

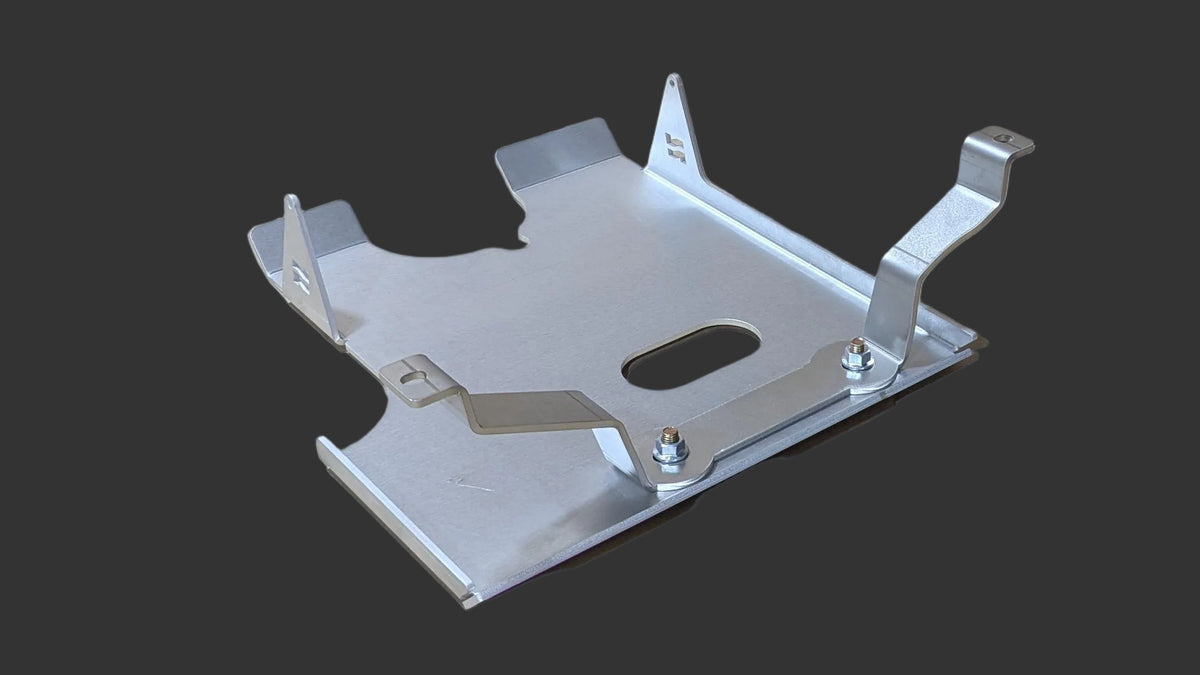

The skid plate uses:

• 3/16-inch 5052 aluminum plate
• 3/16-inch stainless-steel load bracket

The aluminum plate provides coverage beneath the rear differential, while the stainless-steel load bracket reinforces the mounting and load-bearing area.

This is the same proven physical product offered under our 2026+ Honda Passport application.

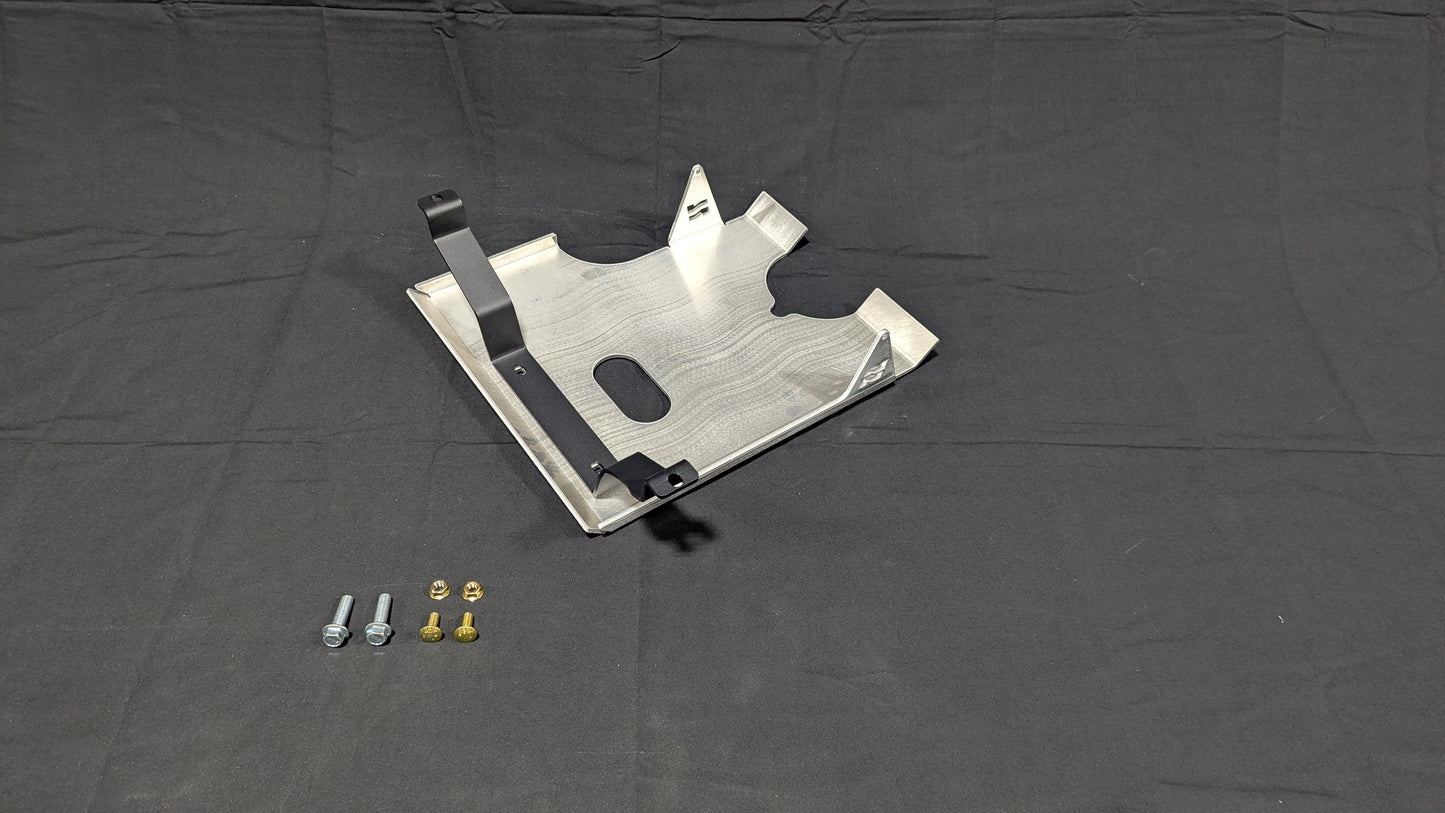

What You Receive

Each order includes:

• 1 V2 rear differential skid plate
• 1 stainless-steel load bracket

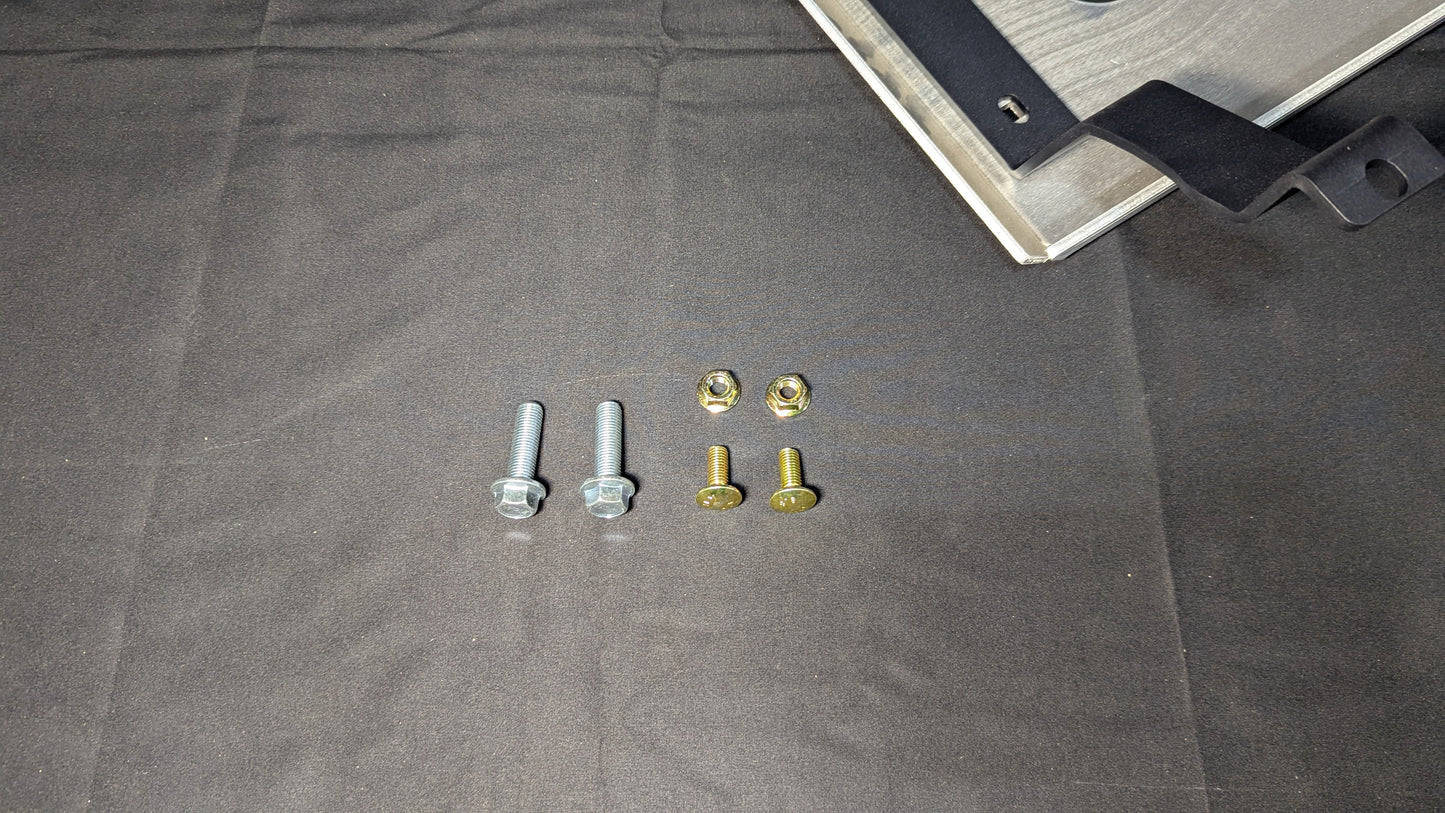

• Mounting hardware

Powder coating is available as a selectable finish option.

Designed for Service Access

A built-in service opening allows access to the rear differential fluid fill and drain points without removing the entire skid plate.

That means you get added protection without making routine differential service unnecessarily difficult.

Fitment

Designed to fit:

• 2023+ Honda Pilot

The skid plate is designed around the Pilot’s factory underbody configuration.

Why Buy From No-Lo Designs?

No-Lo builds vehicle-specific protection for Honda platforms instead of relying on generic, one-size-fits-all parts.

This product provides:

• Platform-specific fitment
• 3/16-inch 5052 aluminum construction
• Stainless-steel load bracket
• Integrated differential-service access
• Mounting hardware included
• USA manufacturing

The product was also purchased by the HDMA ADC, HRC department. This does not imply Honda endorsement, approval, certification, or testing. It simply documents that the HRC department purchased the product.

Installation

Installation takes approximately 20 to 30 minutes.

Required Tools

• 10mm socket or wrench
• 14mm socket or wrench
• 15mm socket or wrench
• 6-inch extension
• 3/8-inch ratchet

Installation video: Here

Properly support the vehicle before working underneath it. Professional installation is recommended if you are not comfortable working with basic vehicle hardware.

Material Notes

Minor scratches, sheet marks, or manufacturing marks may be present on the aluminum plate. These are normal characteristics of the material and production process and are not automatically defects.

Price and Shipping

$275

• Order processing: 1 to 3 business days
• Estimated delivery: 2 to 5 business days
• Shipping: Free
• International duties, fees, and taxes are the buyer’s responsibility
• Warranty and returns: Here

Protect Your Rear Differential

Add vehicle-specific protection designed for the 2023+ Honda Pilot, with service access built into the plate and installation that takes about 30 minutes.

Select your preferred finish and add the V2 Rear Differential Skid Plate to your cart.
