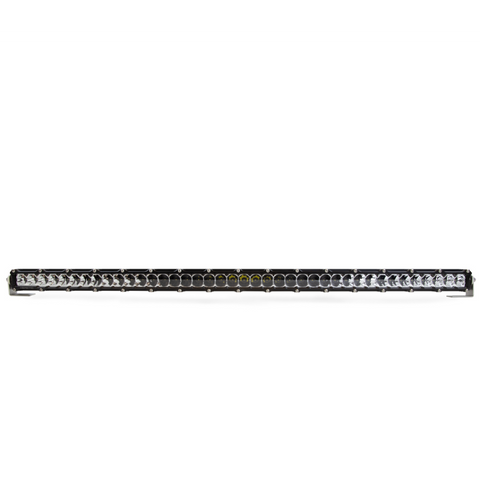

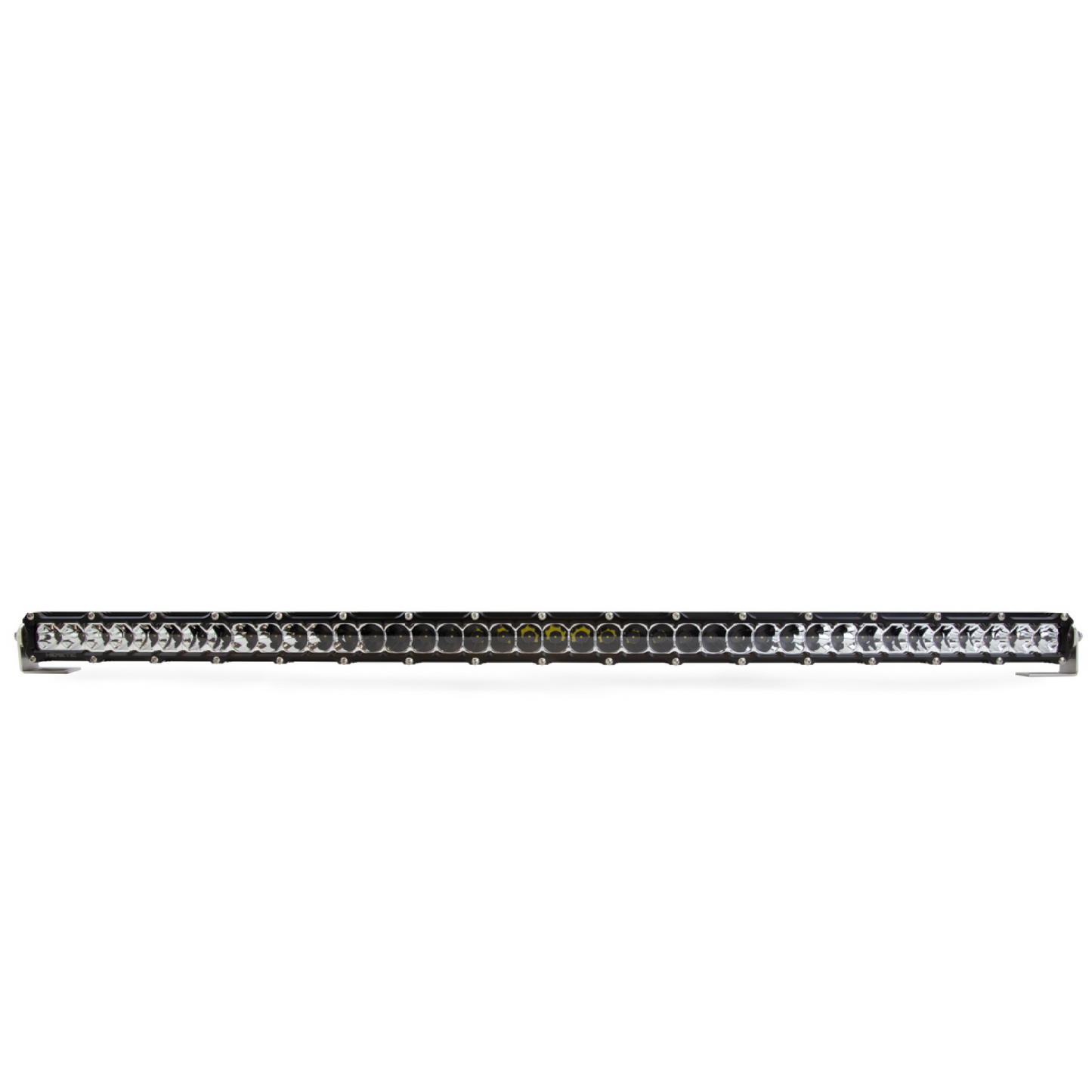

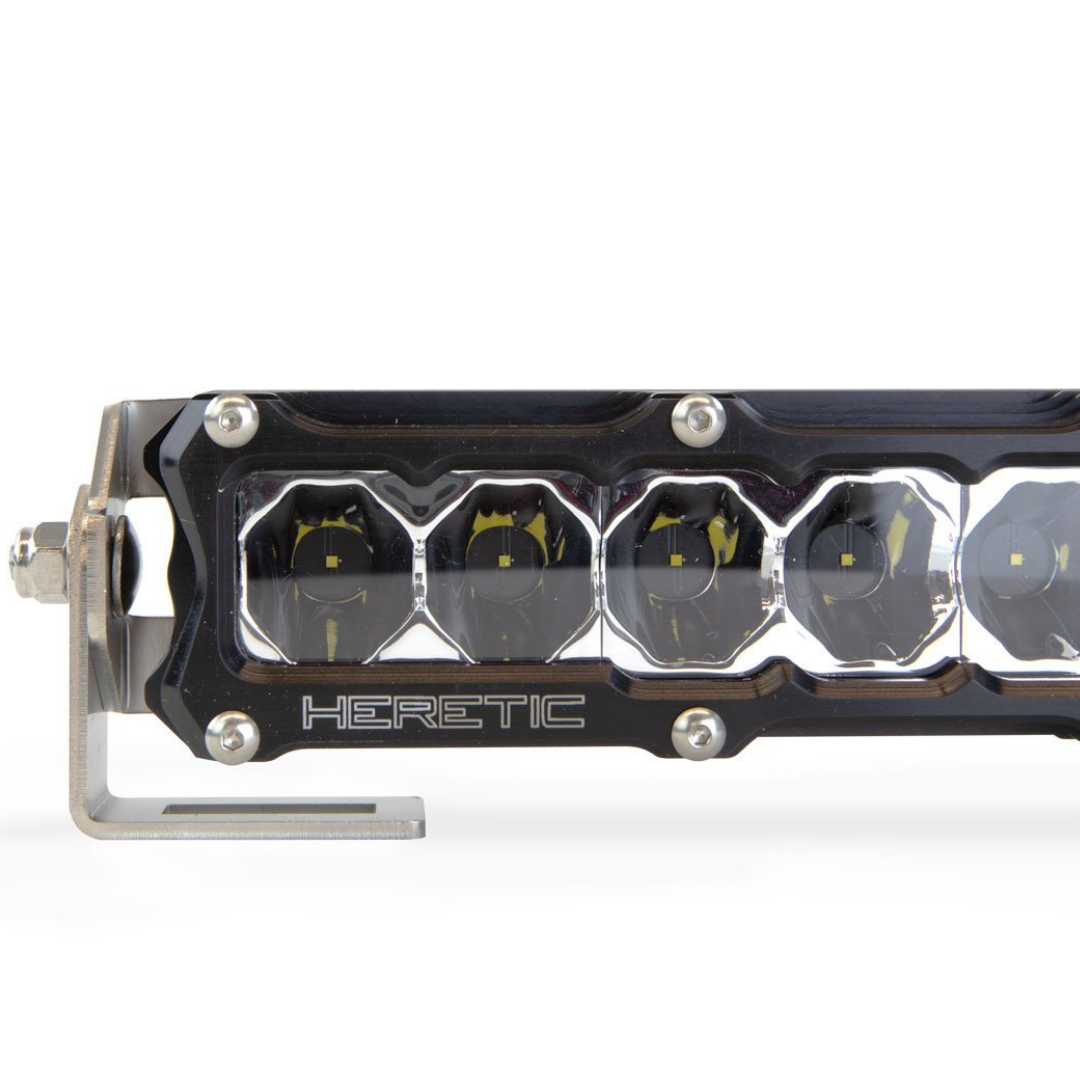

40" Curved LED Light Bar

  • Sale
  • Regular price $884.99
Shipping calculated at checkout.


40” Performance and aesthetics:

Overview

The Heretic 40" Curved LED light bar is a beast of a light when it comes to LED light bars. They truly turn darkness into light. These high performance 6-series curved clear LED light bars are designed and manufactured in the USA, housed in CNC machined aircraft-grade aluminum, and outfitted with best-in-class circuit boards that allow temperature control and long-lasting light. The 40” curved LED light bar is recommended for forward-facing applications in aftermarket roof racks like PRINSU and UTV roll cages. This light bar is best for visibility on clear night conditions. With bracket included this becomes a 42" LED Light Bar.

Features

  • USA Patented 6061 CNC Aluminum Grade Billet Housing
  • (40) 6-watt CREE LED
  • IP68 rated Stainless Steel Mounts
  • Designed, Manufactured, Assembled, Supported, and Shipped in Centerville,Utah
  • Customize Your Beam Pattern: Combo, Spot, or Flood
  • Customize Your Bezel - Contact Heretic Studio

Parts Sold Separately

  • Wiring Harness
  • Aftermarket Mount for Roof Rack Attachment



Details/Specs

Shipping Weight: 8lbs
Type: 40” LED Light Bar
Housing: CNC Aircraft-Grade Aluminum
Location: Roof, Bumper, Grille, Rack
Light Color: White
Lens Color: Clear
Wattage: 240W
Amp Draw at 13.8V: 25.4A
Voltage: 9V-36V
IP Rating: IP68
DIM (Light Only): L 41” x D 1.5” x H 2”
DIM (Light W/ Bracket): L 42” x D 1.5” x H “2.4
Lumens: 29040 lm
Lux At 10m:
  • Spot: 8250 lx
  • Flood: 1755 lx
  • Combo: 5652 lx
Candela:
  • Spot: 825000 cd
  • Flood: 1175500 cd
  • Combo: 565200 cd
Beam Distance:
  • Spot: 1817 m
  • Flood: 838 m
  • Combo: 1504 m
DOT Compliant: No
Prop 65: No
SAE/ECE: No



Vehicle Application

Typically forward-facing placement for UTV roll cages that have a curved design. Requires aftermarket mount.
